Tire pressure gauge Hiprema 4

Tire gauge HiPreMa4 used by Moto 3 Racing Team

Tire gauge HiPreMa 4 used by Crg Kart Racing Team

High Precision digital tire pressure gauge

The digital Tire Pressure gauge Hi.Pre.Ma 4 is the fourth version of this instrument that has become the most used in all categories of motorsport as far as measurement of tire pressures.

It has a new design, re-engineered electronics, new backlit display, ambient light sensor, the possibility to save Time and Date at each session and many new other functions that can be activated from the menu available in 3 languages.

Engineered for the Racing World where tire pressure is primary for the performance of the tires. With HiPreMa 4 you measure the pressure without errors.

Accuracy for your tire pressure

Adjust and measure the Tire Pressure with a range of 5 BAR / 72 PSI with high accuracy of 0.1% over the full scale.

Stores cold and hot tires pressure

All the values of the tires pressure directly on the display. You can immediately check how tires are working and what is your chassis balance.

The backlit display of the tire gauge HiPreMa 4 with resumed the COLD and HOT tire pressures.

Reliability

This tire pressure gauge HiPreMa 4 does not require calibration. Whenever you switch on it the internal microprocessor automatically performs the procedure in order to reach a reliable measure at 100%.

A backlight display much larger than before

The backlit display shows Time - Air temperature - Battery level and Pressure value.

How to use tire pressure gauge HiPreMa 4

You can use it as a simple digital tire pressure gauge or by pressing MEM buttons you can save the COLD and HOT tire pressures.

The Hiprema 4 Tire pressure gauge has 2 function modes:

Normal mode

Allows pressures to be measured and adjusted without saving them.

Memory mode

Pressing MEM button, it is possible to save in sequence COLD and HOT tire pressures and to have the pressure changes had during the session directly on the display. For each session, it is possible to save not only pressures but also:

Date and Time
Air temperature
Difference between COLD and HOT tire pressures

The memory has enough capacity to save up to 50 sessions.
It is possible to evaluate the COLD and HOT pressures difference in order to evaluate the balance of the vehicle.

The picture shows the difference between COLD and HOT tire differences in order to evaluate the balance of the vehicle.

By the Menu you can set 4 Wheels or 2 Wheels MODE

4 Wheels mode setup
CAR mode setup for the digital pressure gauge Hiprema 4

2 Wheels mode setup
BIKE mode setup for the digital pressure gauge Hiprema 4

EASE OF USE

You can save the tires pressure simply by pressing the MEM buttons. The display show automatically which tire to measure and store.

The HiPreMa 4 is designed for all Motorsport categories.

According to the sense of rotation of the track, it is possible to choose the favorite rotation for saving pressures - Clockwise or anti Clockwise - and if you want to start from Front Wheels or Rear Wheels.

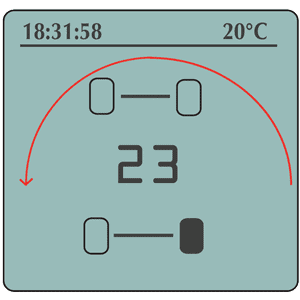

Set of the rotation sense to measure and save tire pressures.

Counterclockwise sense for saving tire pressures setup

Made In Italy product by Prisma Electronics

Trusted by the most important motorsport Teams

Prisma Electronics partners in the motorsport categories

In the picture the Aprilia MotoGp Racing Team is using the High Precision Tire pressure Gauge HPM4

Features

PRESSURE SHOT® function

An very easy of use way of quickly just checking the hot tyre pressure. By activating this function the pressure gauge HIPREMA 4 save automatically the HOT tire pressures without pressing any buttons.

PRESSURE gauge accuracy : 0.1%

Maximum error at 5 BAR : +/- 0,005 BAR -- ( 0.072 PSI )
Maximum error at 1 BAR : +/- 0,001 BAR -- ( 0.014 PSI )

CALIBRATION

Tire pressure gauge HPM4 does not require calibration. The internal microprocessor automatically performs the procedure in order to reach a reliable measure at 100%.

PRESSURE and TEMPERATURE units
